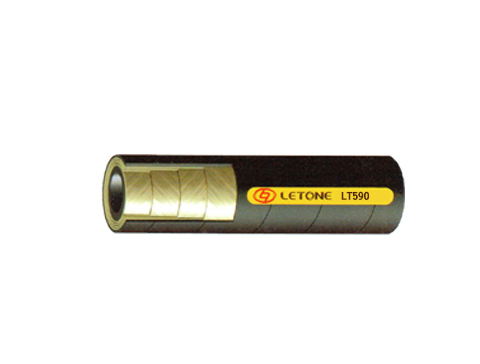

Large Size Wire Spiral Hydraulic Rubber Hose

Large Size Wire Spiral Hydraulic Rubber Hose

Features：Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsion oil

Tube：hoses are made of special composite rubber internals with good super high temperature resistance

Reinforcement：Multispiral high tensile super flexible steel wire

Cover：Anti-aging synthetic rubber

Temperature Range：-40℃~100℃（-40°F~+212°F）

Standard：Hose execution API,ISO6807 standard

online consultant Tel:+8616650911696

TECHNICAL PARAMETER

I.D. (mm)	I.D. (in.)	I.D. (mm)		O.D.(mm)	Max.W.P	Min. B.P	Min. B.R
I.D. (mm)	I.D. (in.)	Min	Max	Max	(MPa)	(MPa)	(mm)
51	2-- 4	50.0	52.0	70.5	35	87.5	900
64	2 1/2-- 4	62.8	65.2	85.5	35	87.5	1100
76	3-- 4	74.6	77.4	109.0	35	87.5	1200
89	3 1/2-- 4	87.6	90.4	122.0	35	87.5	1300
127	4-- 4	125.5	128.5	135.0	35	87.5	1400
51	2--6	50.0	52.0	73.5	50	140	1000
64	2 1/2--6	62.8	65.2	92.0	50	140	1200
76	3--6	74.6	77.4	105.5	50	140	1300
89	3 1/2--6	87.6	90.4	121.5	50	140	1400
102	4--6	100.5	103.5	139.0	50	140	1600
