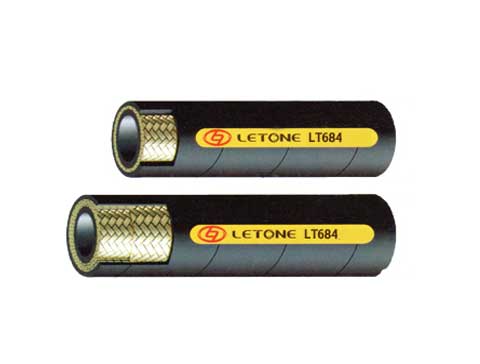

Heat Resistant oil wire braided rubber hose

Applications：suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for high temperature pipe

Tube：black heat-resistant oil synthetic rubber

Reinforcement：one or two layers of super flexible high-strength steel wire

Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber

Temperature range： -40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F)

online consultant Tel:+8616650911696

TECHNICAL PARAMETER

SIZE (Dash)	SIZE (in.)	I.D.		Max.W.P.	Min.B.P.	Min.B.R.
SIZE (Dash)	SIZE (in.)	Min	Max	(MPa)	(MPa)	(mm)
5—1	3/16—1	4.6	5.4	21.0	84.0	90
6—1	1/4—1	6.2	6.9	19.3	77.0	100
8—1	5/16—1	7.7	8.5	17.5	70.0	115
10—1	3/8—1	9.3	10.1	15.8	63.0	130
13—1	1/2—1	12.3	13.5	14.0	56.0	180
16—1	5/8—1	15.5	16.7	10.5	42.0	200
19—1	3/4—1	18.6	19.8	8.7	35.0	240
25—1	1—1	25.0	26.4	7.0	28.0	300
32—1	1 1/4—1	31.4	33.0	4.3	17.5	420
38—1	1 1/2—1	37.7	39.3	3.5	14.0	500
51—1	2—1	50.4	52.0	2.6	10.5	630
5—2	3/16—2	4.6	5.4	35.0	140.0	90
6—2	1/4—2	6.2	6.9	35.0	140.0	100
8—2	5/16—2	7.7	8.5	29.7	119.0	115
10—2	3/8—2	9.3	10.1	28.0	112.0	130
13—2	1/2—2	12.3	13.5	24.5	98.0	180
16—2	5/8—2	15.5	16.7	19.2	77.0	200
19—2	3/4—2	18.6	19.8	15.7	63.0	240
25—2	1—2	25.0	26.4	14.0	56.0	300
32—2	1 1/4—2	31.4	33.0	11.3	45.0	420
38—2	1 1/2—2	37.7	39.3	8.7	35.0	500
51—2	2—2	50.4	52.0	7.8	31.5	630
